Image Sensor: CCD
TV system: NTSC
Horizontal Resolution: 480 TV lines
Total Pixels: 648*488 pixels
Mini Lumination: 0 Lux
Night Vision: 5 meters
Lens: 2.8mm /170 degree
Diagonal Viewing Angle: 170 degree
Synchronization: Internal synchronization
Signal to noise ratio: >48db
Video Output: RCA interface, 1.0Vp-p, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 130mA
Operating Temperature: -10 to 50 degree centigrade, RH95% Max.
Storage Temperature: -30 to 60 degree centigrade, RH95% Max
Video cable length: 6m
Power supply cable length: 150cm

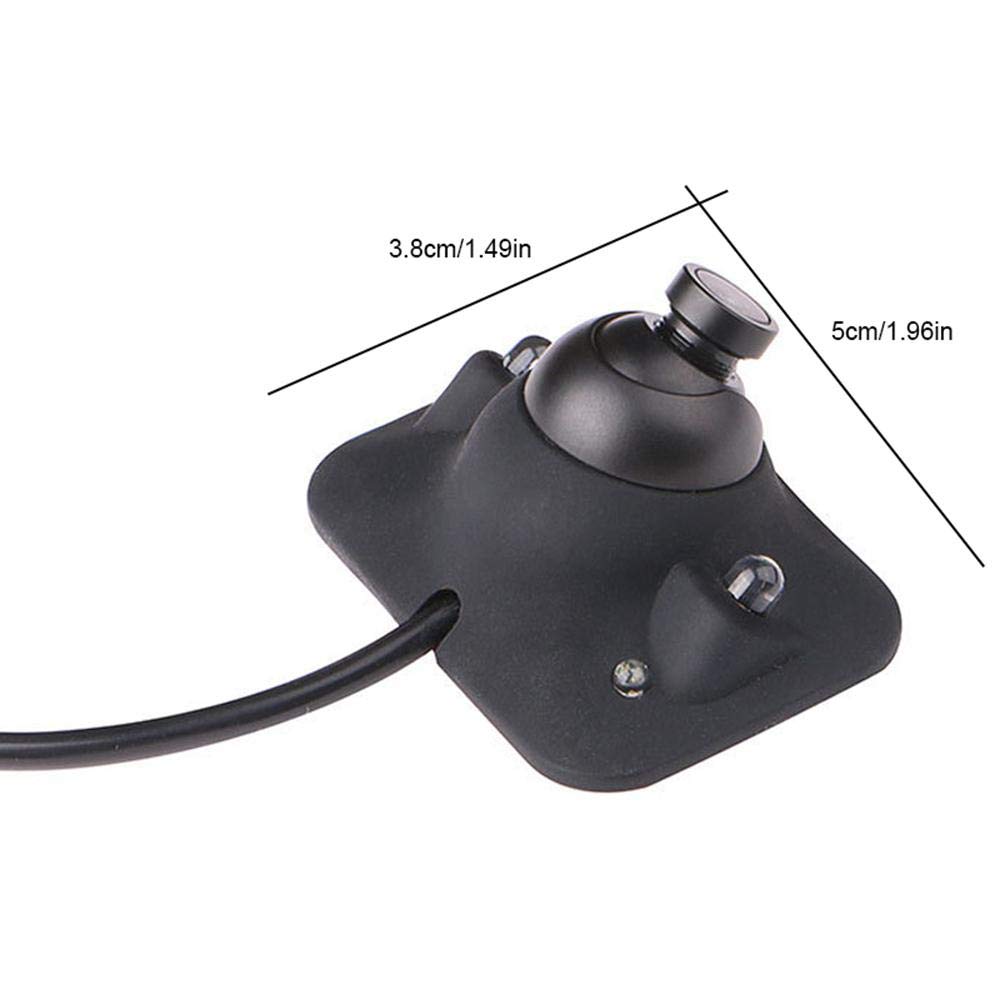

Camera dimensions: 21 X 23mm
- Wide viewing angle-LED light sensor camera with 170° ultra-wide Angle of view is used for blind areas that cannot be seen in driving. The clear picture enables you to avoid scratching other cars when you cannot see the blind areas, resulting in car rear-end collision, making parking more portable and safer, and guaranteeing the safety of drivers and vehicles

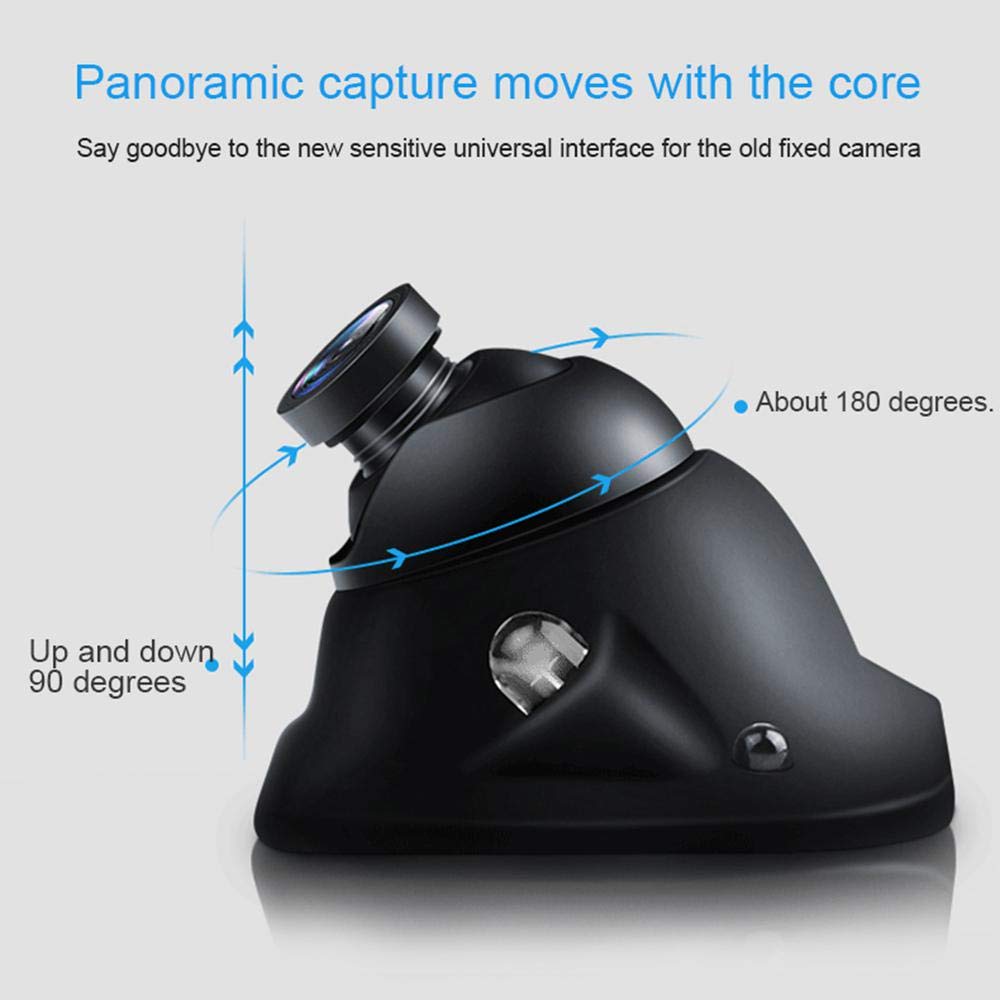

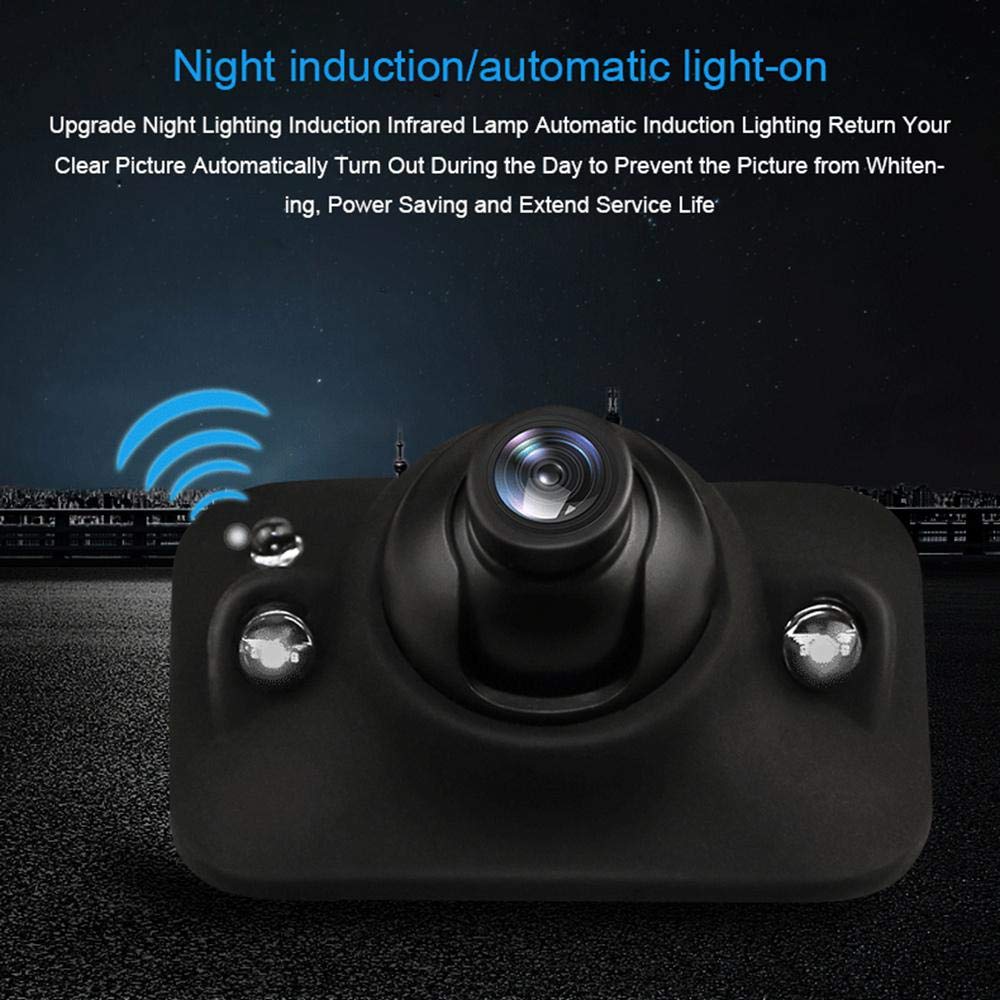

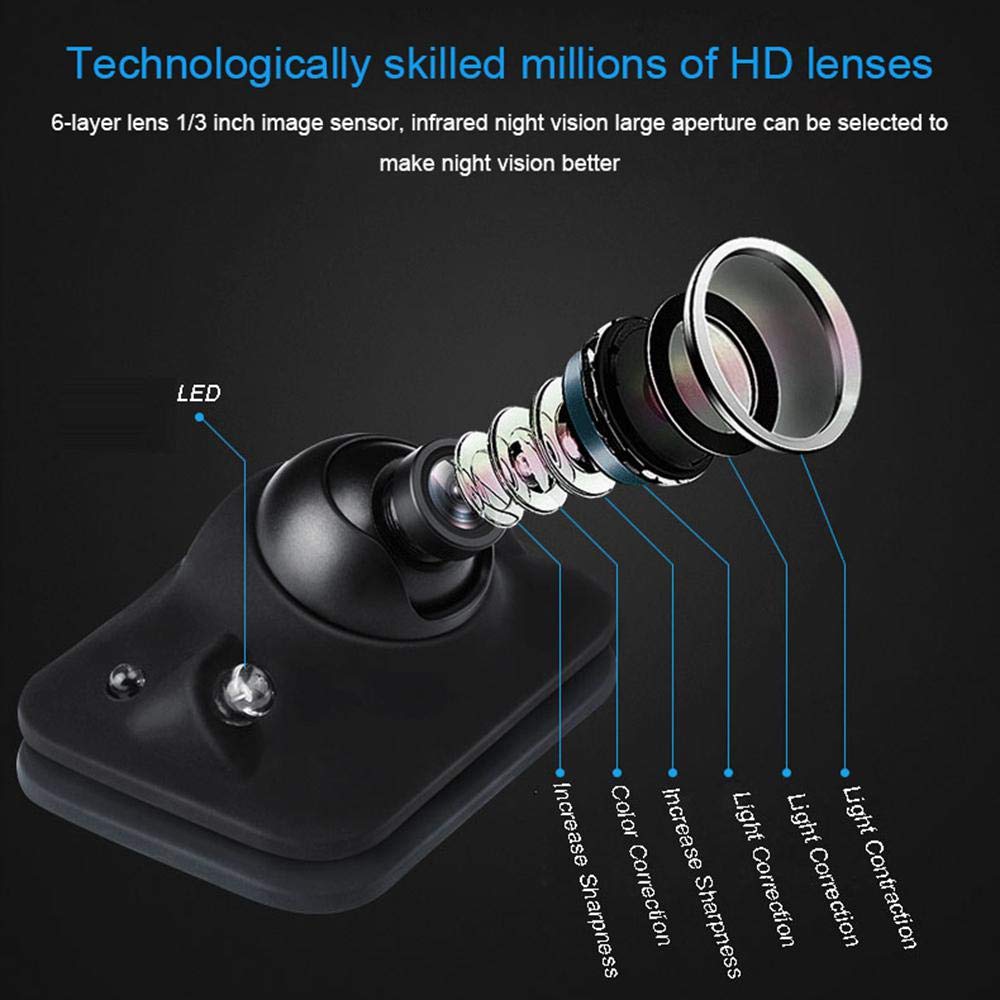

- Backup camera system-High definition, 16FT night vision distance with two auto-dimming LED, 6 layers of glass lens. The camera can be used as front/rear/left/right side view camera according to your need -- Providing excellent blind spot viewing whether backing up or traveling on the road, you can install it at the area you need most.

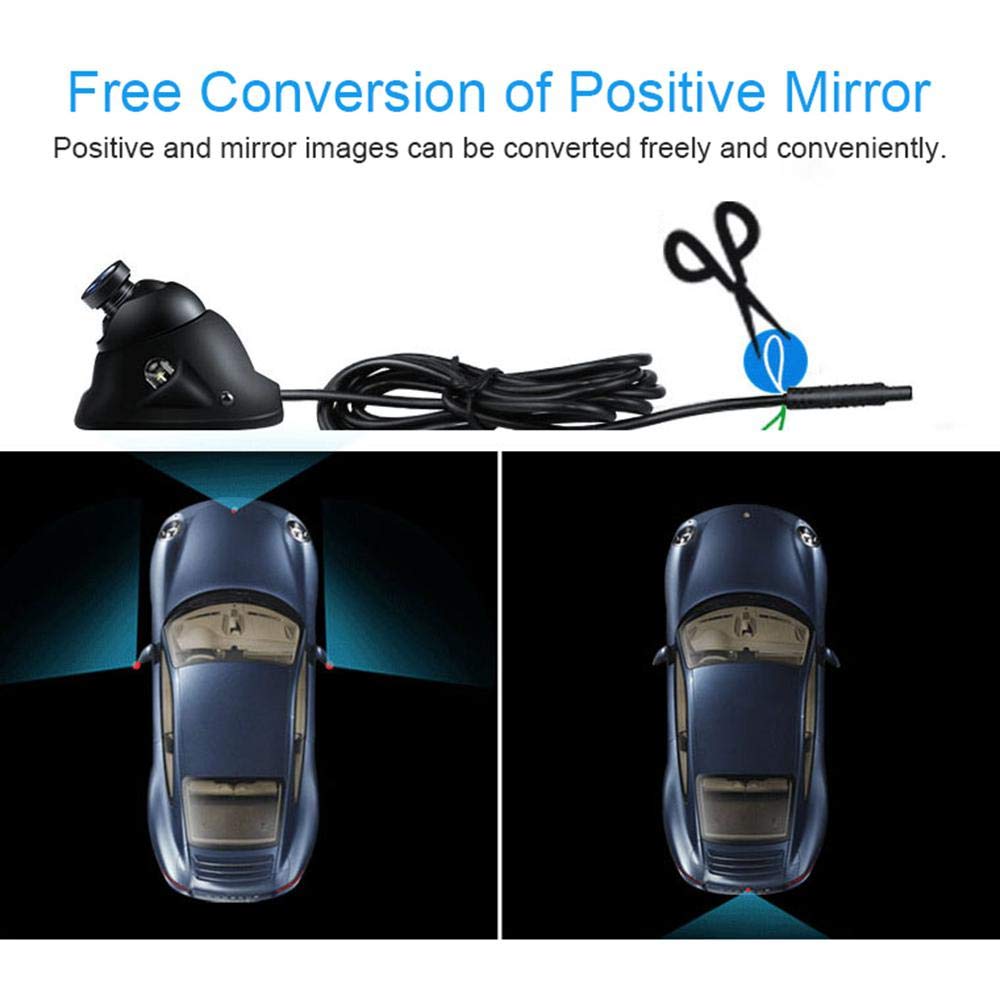

- Wire control design-The backup camera for car has useful loop controls. Keep the green wire when you don’t need the guideline, cut it and the guideline will appear. Keep the white wire, the camera shows the front view image, cut the white wire the camera will show rear view image
- Easy installation-No need to drill holes, just peel off the sticker and paste it into the location you want to install.
- Parking camera is suitable for most vehicles-Such as trucks, SUVS, RV and Mini Van. 8M long vedio cable. The rear camera of the car can be attached to any car surface parallel to the ground, rather than perpendicular to the surface of the ground. If you have any questions, please feel free to contact us.

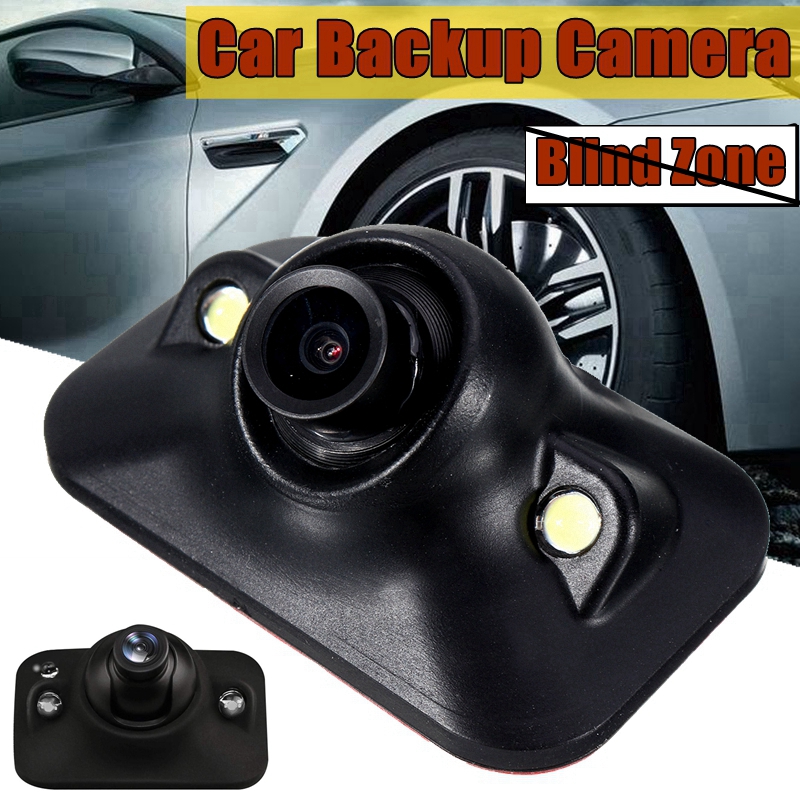

1x Car Backup Camera
1x 6 Meters Extension Cable
1x User Manual
1x Power Core
